ALD
ATOMIC LAYER DEPOSITION
ATOMIC LAYER DEPOSITION
It was in 2014 that the company unveiled a new treatment family, known as NanoDeCo® , derived from ALD technology.
ALD (or Atomic Layer Deposition) is a gaseous phase chemical deposition process used to obtain low-stress layers.
PIONEER IN ALD DECORATIVE TREATMENT
As a business, POSITIVE COATING has pulled off the feat of transposing ALD technology, initially used in the semi-conductors industry for its diffusion barrier properties, by adapting it to the watchmaking sector for its decorative and anticorrosive properties.
ADVANTAGES OF ALD TECHNOLOGY
+ GRANDE DIVERSITÉ DE COULEURS
Bleu, violet, vert, orange, rose… et leurs différentes nuances.
+ COULEURS INTERFÉRENTIELLES
Elles dépendent de l’épaisseur des couches appliquées.
+ PARFAITE MAÎTRISE DE L’ÉPAISSEUR À L’ÉCHELLE NANOMÉTRIQUE
De 10nm à 300nm.
+ VARIÉTÉ DES MATIÈRES À TRAITER
Alliages cuivreux, titane, or, aciers, céramiques, plastiques, etc.
+ RESPECT DES TERMINAISONS HORLOGÈRES
Sablé, satiné, poli, côte de Genève, perlage, etc.
+ PARFAITE UNIFORMITÉ 3D ET RÉPÉTABILITÉ DE LA COULEUR
+ PERSONNALISATION OPTIMALE
+ DÉPÔTS MULTICOUCHES POUR COMBINER LES PROPRIÉTÉS ESTHÉTIQUES ET FONCTIONNELLES
+ EXCELLENTE COUCHE BARRIÈRE
+ PROCÉDÉ POSSIBLE À
DIFFÉRENTES TEMPÉRATURES
de 100°C à 300°C
+ EXCELLENTS RÉSULTATS AUX TESTS HORLOGERS
Résistance climatique, UV, etc.

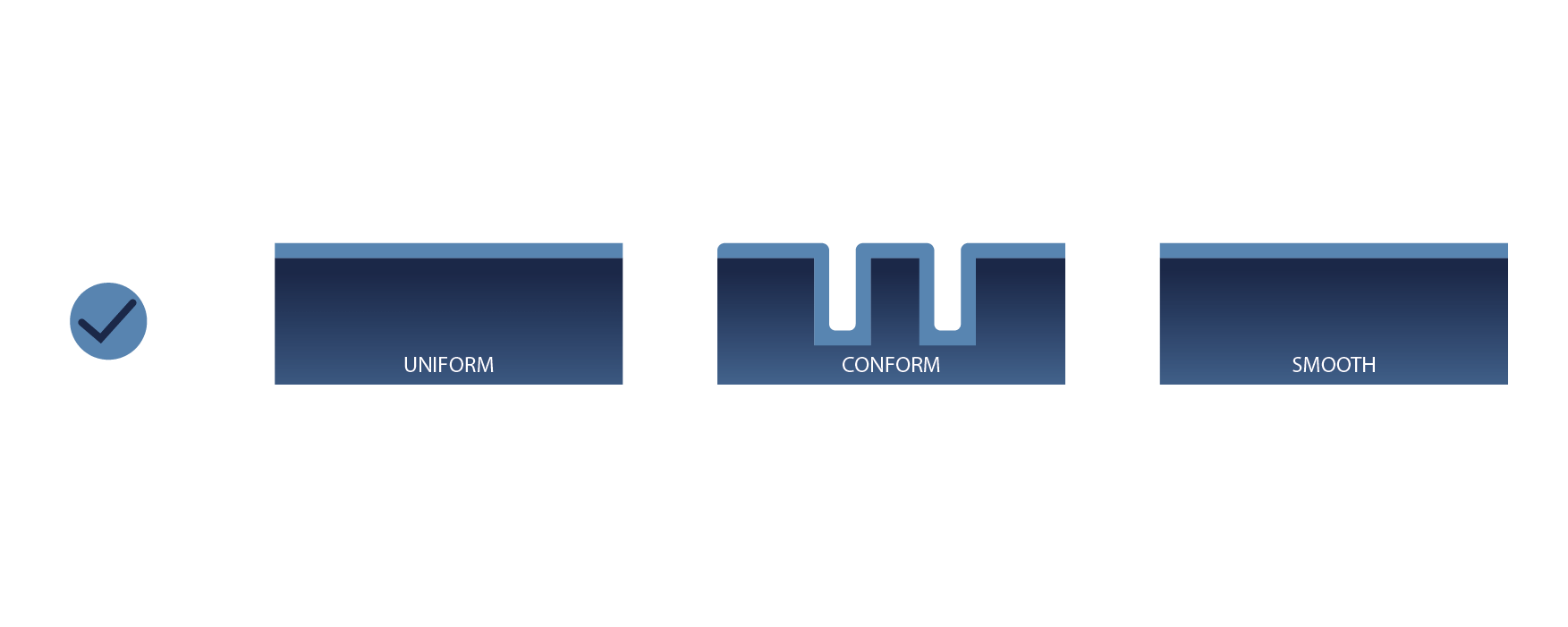

EXCELLENT HOMOGENEITY ON 3D PARTS
The advantage of this technology lies in the fact that these treatments are perfectly compliant and uniformly coated, with a precision of around one nanometre. So these layers meet the highest requirements of micro-technology.
ALD SURFACE COATING

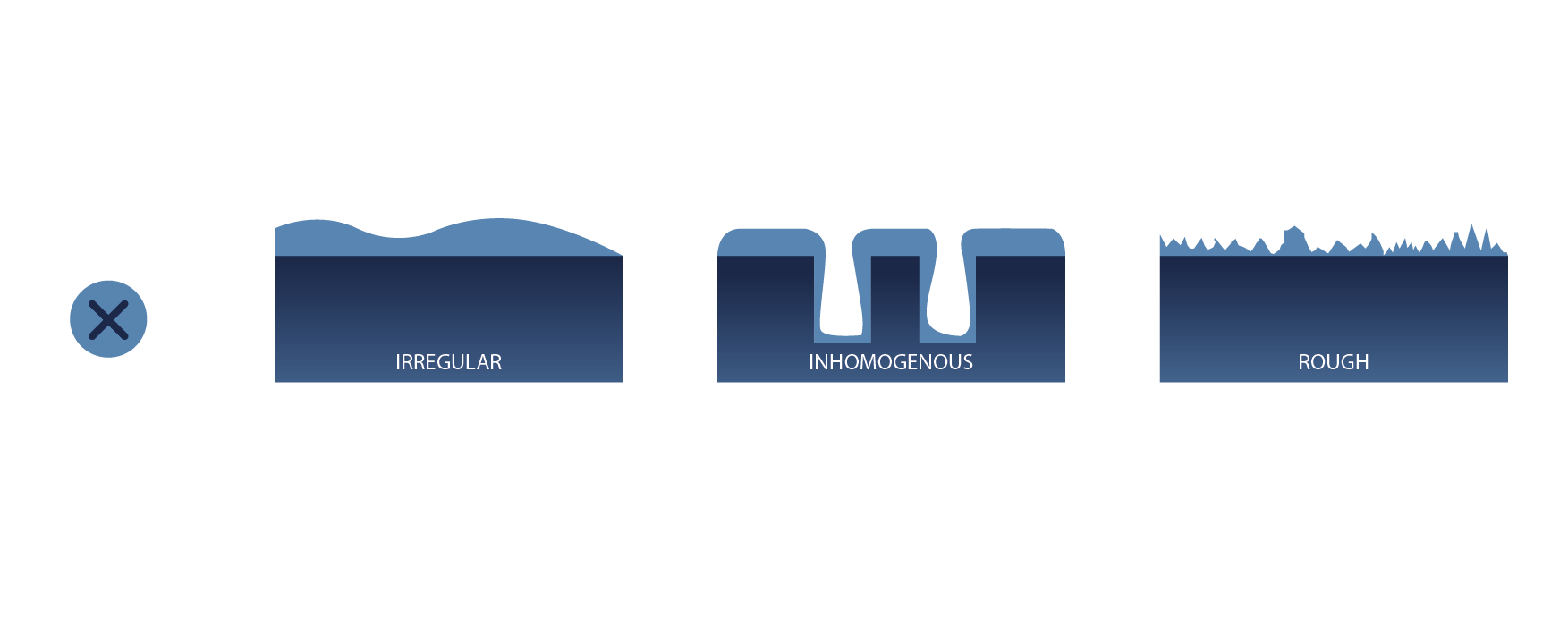

OTHER SURFACE COATINGS
Scale µm
WIDE RANGE OF COLORS
These treatments stand out for a wide range of colors and shades, perfectly repeatable and applicable to parts with complex 3D geometries.
SURFACE FINISH PRESERVED
Control of the coated layers to a nanometric scale results in a tiny thickness allowance, in order to conserve the mechanical decoration surface.
ALD treatments are reversible processes, despite the very high chemical stability, and guarantee excellent protection against corrosion of metal substrates.
HOW TO DEPOSIT THIN FILMS OF MATERIAL USING GASEOUS PRECURSORS?
- A precursor A is introduced into the chamber, and deposited
over the entire surface of the treated parts. - A precursor B is then introduced, and reacts with the first atoms deposited, to form a compound. This phenomenon constitutes a cycle.
- The cycle is reproduced until you obtain the desired thickness.
The deposition temperature is between 100 and 300 °C.
COATINGS SUITABLE FOR
VARIOUS METALS AND CERAMICS
STAINLESS STEEL
TITANIUM ALLOYS
COPPER ALLOYS
GOLD ALLOYS
HEAVY METAL (TUNGSTEN)
ZIRCONIA
ALUMINA
SAPPHIRE
GLASS
